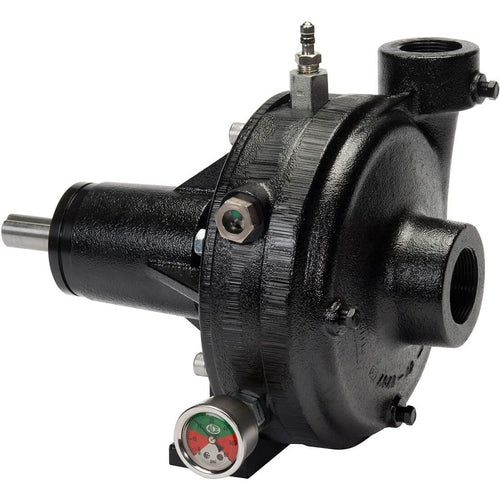

Belt Driven E-coated Cast Iron Pump with 1-1/2" Suction x 1-1/4" Discharge Ace Pumps FMCWS-CW-650
Weight (lbs.): 48, Material: E-coated Cast Iron, Technical Specifications: Ace Pumps FMCWS-CW-650 Product Specifications, Ace Pumps EDP #: 47058, Power Type: Belt Driven, Inlet: 1-1/2" NPT, Outlet: 1-1/4" NPT, Maximum Flow Rate (GPM): 140, Maximum Pressure (PSI): 160, Part Breakdown:
, Reference Number Part Number EDP Number Description Required, 1 BAC-53 41110 Pipe plug, 1/8” NPT 3, 1 41120 41120 Pipe plug, 1/8” NPT, stainless steel (optional) 3, 2 ACAL-12-650 30155 Volute, 1-1/2” NPT x 1-1/4” NPT, e-coated cast-iron 1, 3 (1) BAC-4-150 40015 O-ring, volute seal 2, 4 40930 40930 Cap screw, 3/8” NC x 3/4” hex head, stainless steel 1, 5 (1) 30029 30029 Washer, 3/8” I.D., sealing, stainless steel 1, 6 BAC-26-650-WS 30192 Impeller, cast iron, wetseal, e-coated 1, 6 BAC-26-650-WS-SS 30193 Impeller, stainless steel, wetseal (optional) 1, 7 BAC-16-650 45262 Seal plate, cast iron, e-coated 1, 7 BAC-16-650-SS 45266 Seal plate, cast iro
| Reference Number | Part Number | EDP Number | Description | Required |
| 1 | BAC-53 | 41110 | Pipe plug, 1/8” NPT | 3 |
| 1 | 41120 | 41120 | Pipe plug, 1/8” NPT, stainless steel (optional) | 3 |
| 2 | ACAL-12-650 | 30155 | Volute, 1-1/2” NPT x 1-1/4” NPT, e-coated cast-iron | 1 |
| 3 (1) | BAC-4-150 | 40015 | O-ring, volute seal | 2 |
| 4 | 40930 | 40930 | Cap screw, 3/8” NC x 3/4” hex head, stainless steel | 1 |
| 5 (1) | 30029 | 30029 | Washer, 3/8” I.D., sealing, stainless steel | 1 |
| 6 | BAC-26-650-WS | 30192 | Impeller, cast iron, wetseal, e-coated | 1 |
| 6 | BAC-26-650-WS-SS | 30193 | Impeller, stainless steel, wetseal (optional) | 1 |
| 7 | BAC-16-650 | 45262 | Seal plate, cast iron, e-coated | 1 |
| 7 | BAC-16-650-SS | 45266 | Seal plate, cast iron, stainless steel (optional) | 1 |
| 8 | 41107 | 41107 | Bushing, #8 SAE x 1/4” FNTP, hex, with O-ring | 1 |
| 9 | 41316 | 41316 | Air valve, 1/4” NPT | 1 |
| 10 | 41108 | 41108 | Plug, #8 SAE, hex head, with O-ring | 1 |
| 11 | 44039 | 44039 | Bushing, #8 SAE x 1/8” FNPT | 1 |
| 12 | 50150 | 50150 | Gauge, pressure, 0-60 PSI, 1/8” NPT | 1 |
| 13 | 55851 | 55851 | Gauge, sight, #8 SAE, with float | 1 |
| 14 (1) | BAC-7-650-WS | 40143 | Seal, dual seal assembly, Type 21, .750 shaft | 1 |
| 15 | BAC-14-650-HYD | 40325 | Mounting frame, cast iron, e-coated | 1 |
| 16 | 41907 | 41907 | Cap screw, 3/8” NC x 1”, socket head, stainless steel (seal plate) | 4 |
| 17 | BAC-42 | 40970 | Cap screw, 3/8” NC x 2” hex head (volute) | 4 |
| 18 | GE-54-660 | 42222 | Slinger, 1.25” OD x .75” ID | 1 |
| 19 | ACAL-32 | 30174 | Snap ring, external, shaft | 2 |
| 20 | 41943 | 41943 | Snap ring, internal, mounting frame | 2 |
| 21 | 40875 | 40875 | Bearing, FMC-650 models | 2 |
| 22 | BAC-32-650 | 40794 | Spacer, shaft | 1 |
| 23 | 41085 | 41085 | Key, .188 x .188 x .875 | 1 |
| 24 | BAC-6-650-SS-WS | 40047 | Shaft, stainless steel, 1” keyed | 1 |
| 25 | BAC-50 | 41080 | Key, 3/16” x 3/16” x 1-1/4” | 1 |
| *26 (1) | 55032 | 55032 | Barrier fluid, quart | 0.45 |
| (1) | RK-FMCWS-650 | 52722 | Repair kit, includes items 3 (2 each), 5, 14, and 26 (1 quart) | - |
