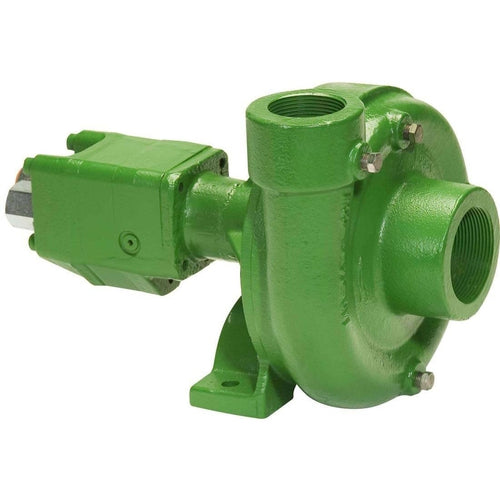

Ace 203 Hydraulic Driven Cast Iron Pump with 1-1/4" Suction x 1" Discharge Ace Pumps FMC-HYD-203


I agree to receive updates from Dunmiers - Our Privacy Policy

Your Price:
$861.59 $1,524.00

Quantity

Added to wishlist

Ace 203 Hydraulic Driven Cast Iron Pump with 1-1/4" Suction x 1" Discharge Ace Pumps FMC-HYD-203

Your Price:
$861.59 $1,524.00

ADD TO CART
Weight (lbs.): 26, Material: Cast Iron, Instruction Manual: Ace Pumps FMC-HYD-203 Instruction Manual, Technical Specifications: Ace Pumps FMC-HYD-203 Product Specifications, Engine: Ace 203, Ace Pumps EDP #: 49826, Power Type: Hydraulic, Hydraulic Flow Rate: 3, Gasket Material: Viton, Inlet: 1-1/4" NPT, Outlet: 1" NPT, Maximum Flow Rate (GPM): 80, Maximum Pressure (PSI): 100, Part Breakdown: FMC-HYD-202-203 Part Breakdown



Reference Number Part Number EDP Number Description Required
1 41110 41110 Pipe plug 3
1 41120 41120 Pipe plug, stainless steel (optional) 3
2 BAC-12 40250 Volute, 1 1/4" x 1" 1
3 BAC-23-A 40391 Nut, 3/8" NF, cad plated 1
4 BAC-24-HYD-SS 40400 Washer, 3/8" star, stainless steel 1
5 BAC-26-HYD-VALOX 40440 Impeller, Valox, keyway 1
5 BAC-26-HYD-Cl 40442 Impeller, cast iron, keyway (optional) 1
*6 BAC-7V 40151 Seal, mechanical, Viton (includes 40160) 1
6 BAC-7SC 40152 Seal, mechanical, silicon carbide (includes 40160), optional 1
6A 40160 40160 O-ring, shaft seal 1
*7 BAC-4 40010 Gasket, 4 hole, (obsolete 1996) 1
*7 BAC-4A 40005 O-ring, body seal 1
8 BAC-14-HYD 40300 Mounting frame (for -200 Series hydraulic motors) 1
9 40950 40950 Cap screw, 3/8" NC x 3/4" hex head 4
9 40930 40930 Cap screw, 3/8" NC x 3/4" hex head, stainless steel (optional) 4
10 BAC-54 41130 Slinger 1
11 BAC-33 40810 Snap ring, internal, BAC-14 mounting frame 2
12 BAC-37 40870 Ball bearing, sealed, BAC-6 shaft 2
13 BAC-32 40790 Snap ring, external, BAC-6 shaft 2
14 BAC-32-S 40795 Spacer for BAC-6 shaft 1
15 BACH-25 40420 Key, 1/8" x 1/8" x 1/2" 1
16 BAC-6-HYD 40060 Shaft, 5/8" diameter, keyway and tang slot (optional) 1
16 BAC-6-HYD-SS 40061 Shaft, 5/8" diameter, keyway and tang slot, stainless steel 1
17 S200 40161 Seal support spacer, 200 Series motor lip seal; effective 6/00 1
18 BAC-76-HYD 41380 Coupling for hydraulic motor 1
19 BAC-75-HYD-202 41368 Hydraulic motor, 2 GPM 1
19 BAC-75-HYD-203 41367 Hydraulic motor, 3 GPM 1
20 41256 41256 Cap screw, 5/16" NC x 3 1/2" hex head (for 204 and 203 motor) 4
20 41250 41250 Cap screw, 5/16" NC x 3 1/4" hex head (for 202 motor) 4
# RK-FMC 52700 Repair kit for FMC series pump 1
# RK-BAC-75-HYD 41371 Repair kit for 202, 203, 204, 206, and 210 motor 1
# RD-BAC-75-HYD-L 41374 Repair kit for 200 series HYD motors equipped with Teflon lip seal 1
, Reference Number Part Number EDP Number Description Required, 1 41110 41110 Pipe plug 3, 1 41120 41120 Pipe plug, stainless steel (optional) 3, 2 BAC-12 40250 Volute, 1 1/4" x 1" 1, 3 BAC-23-A 40391 Nut, 3/8" NF, cad plated 1, 4 BAC-24-HYD-SS 40400 Washer, 3/8" star, stainless steel 1, 5 BAC-26-HYD-VALOX 40440 Impeller, Valox, keyway 1, 5 BAC-26-HYD-Cl 40442 Impeller, cast iron, keyway (optional) 1, *6
