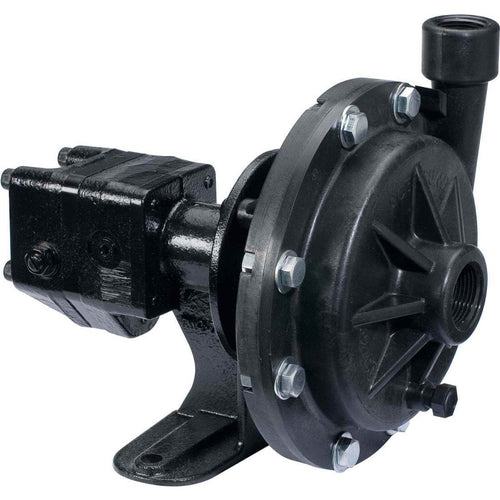

Ace 206 Hydraulic Driven Cast Iron Pump with 1" Suction x 3/4" Discharge Ace Pumps FMC-75-HYD-206
Weight (lbs.): 17, Material: Cast Iron, Instruction Manual: Ace Pumps FMC-75-HYD-206 Instruction Manual, Technical Specifications: Ace Pumps FMC-75-HYD-206 Product Specifications, Engine: Ace 206, Ace Pumps EDP #: 49777, Power Type: Hydraulic, Hydraulic Flow Rate: 7, Gasket Material: Viton, Inlet: 1" NPT, Outlet: 3/4" NPT, Maximum Flow Rate (GPM): 27, Maximum Pressure (PSI): 100, Part Breakdown:
, Reference Number Part Number EDP Number Desc
| Reference Number | Part Number | EDP Number | Description | Required |
| 1 | BAC-53-P | 41109 | Pipe plug, 1/8” NPT, plastic | 1 |
| 2 | 80250 | 80250 | Cap screw, 3/8”-16 x 7/8”, hex head | 8 |
| 3 | 42701 | 42701 | Washer, 3/8” flat | 8 |
| 4 | GE-12-75 | 42700 | Volute, 3/4” x 1”, polypropylene | 1 |
| 5 | 42240 | 42240 | Cap screw, 1/4”-28 x 1”, hex, stainless steel | 1 |
| 6 (1)(2) | 30028 | 30028 | Washer, sealing | 5 |
| 7 | GE-26-75 | 42710 | Impeller, with keyway, polypropylene | 1 |
| 8 | 42238 | 42238 | Cap screw, 5/16”NF x 2-1/4” | 4 |
| 9 (1) | BAC-7-75V | 42730 | Seal, 5/8” , Viton®/carbon/ceramic | 1 |
| 9 (2) | BAC-7SC-75V | 42731 | Seal, 5/8” , Viton®/silicon carbide (optional) | 1 |
| 9A (1)(2) | 40159 | 40159 | “O” Ring, seal seat | 1 |
| 10 (1)(2) | 40017 | 40017 | “O” Ring, volute seal | 1 |
| 11 | GE-14-75 | 42720 | Bracket, polypropylene | 1 |
| 12 | BAC-45 | 41010 | Nut, hex, 3/8” | 8 |
| 13 | BAC-14-75-HYD | 40293 | Mounting frame (for BAC-75-HYD-204R, 206R hydraulic motor) | 1 |
| 14 | BAC-54 | 41130 | Slinger | 1 |
| 15 | BAC-33 | 40810 | Snap ring, internal, BAC-14 mounting frame | 2 |
| 16 | BAC-37 | 40870 | Bearing, BAC-6 driven shaft | 2 |
| 17 | BAC-32 | 40790 | Snap ring, external, BAC-6 driven shaft | 2 |
| 18 | BAC-32-S | 40795 | Spacer for BAC-6 shaft | 1 |
| 19 | 41082 | 41082 | Key, 3/16” x 3/16” x 15/16” | 1 |
| 20 | BAC-6-75-HYD-SS | 40048 | Shaft, 5/8” Driven shaft with tang slot, stainless steel | 1 |
| 21 | S200 | 40161 | Seal support spacer for 200 series hydraulic lip seal | 1 |
| 22 | BAC-75-HYD-204R | 41437 | Hydraulic motor, 4 GPM | 1 |
| 22 | BAC-75-HYD-206R | 41438 | Hydraulic motor, 7 GPM | 1 |
| 23 | 41253 | 41253 | Cap screw, 5/16” NC x 3 1/2” socket head (for 204 motor) | 4 |
| 23 | 41255 | 41255 | Cap screw, 5/16” NC x 3 3/4” socket head (for 206 motor) | 4 |
| 24 | 41875 | 41875 | O-ring, #8 SAE fitting | 2 |
| 25 | BAC-78-8SAE | 41441 | Reverse check assembly, #8 SAE male x 1/2” NPT female | 1 |
| 26 | BAC-80-8SAE | 41455 | Body, restrictor orifice, #8 SAE male x 1/2” NPT female | 1 |
| 27 | 41448 | 41448 | O-ring, orifice insert | 1 |
| 28 | BAC-79-5 | 41457 | Orifice, restrictor insert, .078 (204) | 1 |
| 28 | BAC-79-7 | 41456 | Orifice, restrictor insert, .109 (206) | 1 |
| 29 | LS-204N | 41417 | Flow limiting valve (204), #8 SAE male x 1/2” NPT female | 1 |
| 29 | LS-206N | 41418 | Flow limiting valve (206), #8 SAE male x 1/2” NPT female | 1 |
| (1) | RK-GE-75 | 60840 | Repair kit for FMC-75-HYD series | - |
| (2) | RK-GESC-75 | 60841 | Repair kit for FMC-75-HYD series with silicon carbide shaft seal | - |
| * | RK-BAC-75-HYD-L | 43174 | Repair kit for 200 series motor | - |
