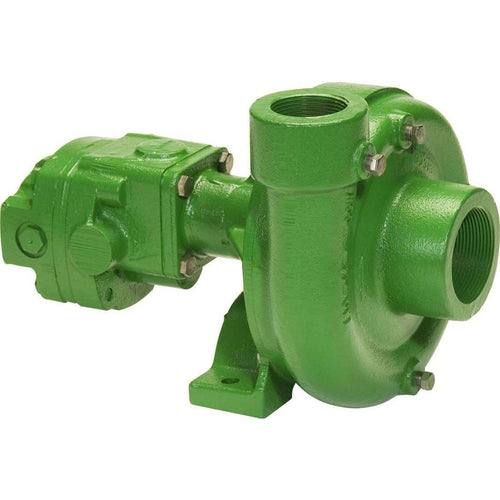

Ace 304 Hydraulic Driven Cast Iron Pump with 2" Suction x 1-1/2" Discharge Ace Pumps FMC-200-HYD-304


I agree to receive updates from Dunmiers - Our Privacy Policy

Your Price:
$1,029.59 $1,818.00

Quantity

Added to wishlist

Ace 304 Hydraulic Driven Cast Iron Pump with 2" Suction x 1-1/2" Discharge Ace Pumps FMC-200-HYD-304

Your Price:
$1,029.59 $1,818.00

ADD TO CART
200 Series High Flow Weight (lbs.): 38, Material: Cast Iron, Instruction Manual: Ace Pumps FMC-200-HYD-304 Instruction Manual, Technical Specifications: Ace Pumps FMC-200-HYD-304 Product Specifications, Engine: Ace 304, Ace Pumps EDP #: 49859, Power Type: Hydraulic, Hydraulic Flow Rate: 11, Gasket Material: Viton, Inlet: 2" NPT, Outlet: 1-1/2" NPT, Maximum Flow Rate (GPM): 200, Maximum Pressure (PSI): 120, Part Breakdown: FMC-200-HYD-304 Part Breakdown



Reference Number Part Number EDP Number Description Required
1 BAC-53 41110 Pipe plug 4
1 41120 41120 Pipe plug, stainless steel (optional) 4
2 7AC-14-CCW 41526 Volute, 2” x 1-1/2” 1
3 BAC-23-A 40391 Nut, 3/8” NF, cad plated 1
3 BAC-23-B-SS 40393 Nut, 3/8” NF, SS (optional) 1
4 BAC-24-HYD-SS 40400 Washer, 3/8” star, stainless steel 1
4 BAC-24-B-SS 42702 Washer, 3/8” SS, vibration proof (optional) 1
5 BAC-26-200-P 40434 Impeller, with extended keyway, thermoplastic 1
5 BAC-26-200-CI 40433 Impeller,with extended keyway, cast iron (optional) 1
5 BAC-26-200-SS 40436 Impeller,with extended keyway, 316 stainless steel (optional) 1
6 (1) BAC-4A 40005 O-ring, body seal 1
7 (1) BAC-7V 40151 Seal, mechanical, Viton (includes 40160 “O” Ring) 1
7 (2) BAC-7SC 40152 Seal, mechanical, silicon carbide (includes 40160 “O” Ring) (optional) 1
7A 40160 40160 O-ring, shaft seal 1
8 BAC-14-HYD-300A 40314 Mounting frame (for -300A series hydraulic motor) 1
9 40950 40950 Cap screw, 3/8” NC x 3/4” hex head 4
9 40930 40930 Cap screw, 3/8” NC x 3/4” hex head, stainless steel (optional) 4
10 41330 41330 Cap screw, 5/16” N. C. x 3/4” hex head, motor to pump 4
11 BAC-54 41130 Slinger 1
12 BAC-33 40810 Snap ring, internal, BAC-14 mounting frame 2
13 BAC-37 40870 Ball Bearing, sealed, BAC-6 shaft 2
14 BAC-32 40790 Snap ring, external, BAC-6 shaft 2
15 BAC-32-S 40795 Spacer for BAC-6 shaft 1
16 BAC-25 40425 Key, 1/8” x 1/8” x 13/16”, extended keyway 1
17 BAC-6-HYD-200-SS 40063 Shaft, extended keyway, tang, stainless steel 1
18 S300 40162 Seal support spacer for 300 Series HYD motor, effective 6/00 1
19 BAC-75-HYD-304N 41343 Hydraulic motor, 11 GPM, effective 5/13 1
19 BAC-75-HYD-304A-12SAE 41426 Hydraulic motor, 11 GPM, #12 SAE end ports (optional) 1
20 41875 41875 O-ring, #8 SAE fitting 1
21 41445 41445 O-ring, #10 SAE fitting 1
22 BAC-80-8SAE 41455 Body, restrictor orifice, #8SAE x 1/2” NPT 1
23 41448 41448 O-ring, orifice insert 1
24 BAC-79-8 41447 Orifice insert, restrictor insert, 0.125 1
25 41442 41442 Reverse check assembly, #10 SAE x 1/2” NPT 1
26 LS-304N 41429 Flow limiter (optional) 1
(1) RK-FMC 52700 Repair kit for FMC series pump -
(2) RK-FMCSC 52706 Repair kit for FMC series pump with silicon carbide shaft seal -
# RK-BAC-75-HYD-300-L 41362 Repair kit for 300 Series
