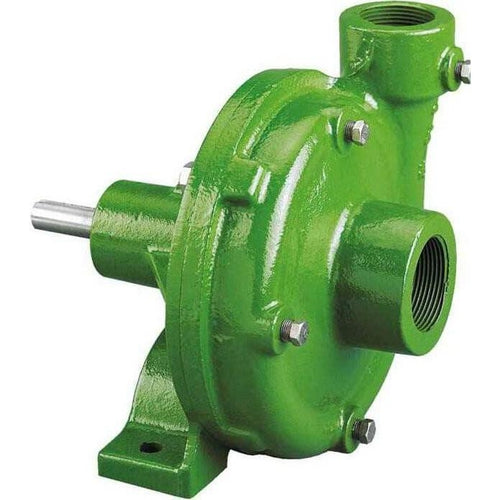

Belt Driven Cast Iron Pump with 2" Suction x 1-1/2" Discharge Ace Pumps FMC-CW-800-DRB
Weight (lbs.): 42, Material: Cast Iron, Technical Specifications: Ace Pumps FMC-CW-800-DRB Product Specifications, Ace Pumps EDP #: 47550, Power Type: Belt Driven, Inlet: 2" NPT, Outlet: 1-1/2" NPT, Maximum Flow Rate (GPM): 180, Maximum Pressure (PSI): 170, Part Breakdown:
, Reference Number Part Number EDP Number Description Required, 1 (1)(2) ACAL-4 30009 “O” ring for ACAL-14 volute seal 1, 1 9000 31130 Gasket, 8 hole, obsolete Jan. 96 1, 2 ACAL-6-SS-A 30017 Shaft, stainless steel 1, 3 ACAL-14 30160 2” x 1-1/2” Volute 1, 4 ACAL-15 30165 Mounting frame 1, 5 ACAL-37-DRB 30179 Bearing, double row 2, 6 (1) TYPE 21-984 30255 Seal, .984” type 21 1, 6 (2) TYPE 21-984-SC 30256 Seal, .984” type 21, silicon carbide (optional) 1, 7 ACAL-26-75 30555 8” Impeller with keyway 1, 8 BAC-53 41110 1/8” NPT pipe plug 3, 8 41120 41120 1/8” NPT pipe plug, stainless steel (optional) 3, 9 GE-54 42220 Slinger 1, 10 ACAL-32 30174 External snap ring 2, 11 BACG-33 45165 Internal snap ring 2, 12 BACG-44-A 45191 9/16” Lockwasher, stainless steel 1, 13 45195 45195 9/16” - 18 Lock nut, hex 1, 14 BACG-90M 45270 Seal cartridge for mechanical seal 1, 15 (1)(2) 73010 73010 “O” Ring for seal cartridge 1, 16 41079 41079 3/16” x 3/16” x 1/2” Impeller key 1, 17 BAC-50 41080 3/16” x 3
| Reference Number | Part Number | EDP Number | Description | Required |
| 1 (1)(2) | ACAL-4 | 30009 | “O” ring for ACAL-14 volute seal | 1 |
| 1 | 9000 | 31130 | Gasket, 8 hole, obsolete Jan. 96 | 1 |
| 2 | ACAL-6-SS-A | 30017 | Shaft, stainless steel | 1 |
| 3 | ACAL-14 | 30160 | 2” x 1-1/2” Volute | 1 |
| 4 | ACAL-15 | 30165 | Mounting frame | 1 |
| 5 | ACAL-37-DRB | 30179 | Bearing, double row | 2 |
| 6 (1) | TYPE 21-984 | 30255 | Seal, .984” type 21 | 1 |
| 6 (2) | TYPE 21-984-SC | 30256 | Seal, .984” type 21, silicon carbide (optional) | 1 |
| 7 | ACAL-26-75 | 30555 | 8” Impeller with keyway | 1 |
| 8 | BAC-53 | 41110 | 1/8” NPT pipe plug | 3 |
| 8 | 41120 | 41120 | 1/8” NPT pipe plug, stainless steel (optional) | 3 |
| 9 | GE-54 | 42220 | Slinger | 1 |
| 10 | ACAL-32 | 30174 | External snap ring | 2 |
| 11 | BACG-33 | 45165 | Internal snap ring | 2 |
| 12 | BACG-44-A | 45191 | 9/16” Lockwasher, stainless steel | 1 |
| 13 | 45195 | 45195 | 9/16” - 18 Lock nut, hex | 1 |
| 14 | BACG-90M | 45270 | Seal cartridge for mechanical seal | 1 |
| 15 (1)(2) | 73010 | 73010 | “O” Ring for seal cartridge | 1 |
| 16 | 41079 | 41079 | 3/16” x 3/16” x 1/2” Impeller key | 1 |
| 17 | BAC-50 | 41080 | 3/16” x 3/16” x 1-1/4” Shaft key | 1 |
| 18 | ACAL-32-S-A | 30176 | Spacer for ACAL-6 Shaft | 1 |
| 19 | 40950 | 40950 | 3/8” NC x 3/4” hex head cap screw | 8 |
| 19 | 40930 | 40930 | 3/8” NC x 3/4” cap screw, stailess steel (optional) | 8 |
| 20 | 41472 | 41472 | Bullet, seal installation tool | - |
| (1) | RK-FMC-CW-800 | 52715 | Repair kit for FMC-CW-800 pump | - |
| (2) | RK-FMCSC-CW-800 | 52716 | Repair kit for FMC-CW-800 pumps, silicon carbide shaft seal | - |
