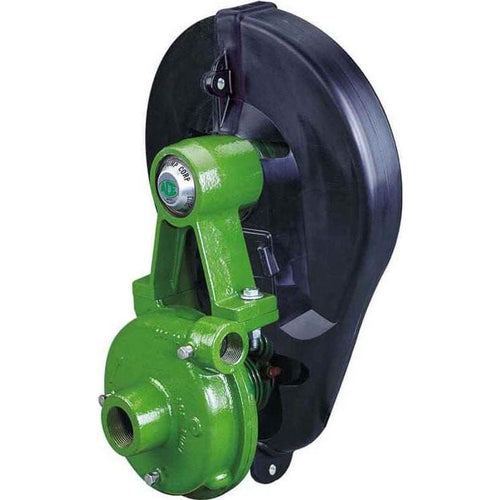

PTO Belt Driven Cast Iron Pump with 1-1/4" Suction x 1" Discharge Ace Pumps PTOC-1000-B


I agree to receive updates from Dunmiers - Our Privacy Policy

Your Price:
$981.59 $1,731.60

Quantity

Added to wishlist

PTO Belt Driven Cast Iron Pump with 1-1/4" Suction x 1" Discharge Ace Pumps PTOC-1000-B

Your Price:
$981.59 $1,731.60

ADD TO CART
1” (25.4mm) stub shaft for installation on trailer sprayers driven by PTO tumblerod Material: Cast Iron, Instruction Manual: Ace Pumps PTOC-1000-B Instruction Manual, Technical Specifications: Ace Pumps PTOC-1000-B Product Specifications, Ace Pumps EDP #: 48505, Power Type: PTO Belt Driven, Inlet: 1-1/4" NPT, Outlet: 1" NPT, Maximum Flow Rate (GPM): 65, Maximum Pressure (PSI): 80, Part Breakdown: FMC-855F-HYD Part Breakdown



Reference Number Part Number EDP Number Description Required
1 BAC-10-S 40190 Shaft, 1” Tumblerod stub 1
2 BAC-10-175-20SP 40180 Shaft, 1-3/4” 20 Tooth PTO spline, includes BAC-11-175 1
3 BAC-10-21SP 40220 Shaft, 1 3/8” 21 Tooth PTO spline, includes BAC-11 1
4 40960 40960 Nut, 3/8” NC, jam 3
5 BAC-40 40940 Set screw, 3/8” NC slotted 3
6 BAC-11-175 40236 Locking collar, split ring (for BAC-10-175-20SP shaft) 1
7 BAC-11 40235 Locking collar, split ring (for BAC-10-21SP shaft) 1
8 BAC-11-1 40237 Set screw (for BAC-11 and BAC-11-175 locking collar) 1
9 BAC-10-6SP-QC 40210 Shaft, 1-3/8” 6 Tooth PTO spline, for quick coupler 1
10 BAC-83-QC 41470 Ball for quick coupler 3
11 BAC-82-QC 41460 Spring for quick coupler 1
12 BAC-81-QC 41450 Ball retainer sleeve for quick coupler 1
13 41250 41250 Cap screw, 5/16” NC x 3-1/4”, hex head 1
14 41300 41300 Set screw, 3/8” NC x 5/8”, allen head 2
15 BAC-30-10-M 40750 Pulley, 6.375” P.D. x 2” Bore, Poly-V (for PTOC-1000-21SP & -B) 1
15 BAC-30-175 40745 Pulley, 6.375” P.D x 2-3/8” Bore, Poly-V (for PTOC-1000-20SP) 1
16 BAC-63 41260 Nut, 5/16” NC, self locking, for tumblerod drive 1
17 BAC-34 40830 Snap ring, internal, BAC-15 bearing housing 2
18 BAC-27 40520 Name plate 1
19 BAC-35 40840 Snap ring, external, BAC-10 drive shaft 1
20 BAC-31-1 40781 Bearing, sealed, BAC-10 drive shaft 2
21 BAC-38-1 40905 Spacer, bearing, BAC-10 shaft 1
22 BAC-44 40990 Washer, 3/8” locking 2
23 BAC-45 41010 Nut, hex, 3/8” NC 2
24 BAC-15 40340 Housing, PTO drive shaft bearing housing 1
24 BAC-15-B 40370 Housing, tumblerod drive shaft bearing housing with mounting base 1
25 BAC-10-6SP 40200 Shaft, 1-3/8” 6 Tooth PTO spline drive 1
26 BAC-51 41090 Shaft, 3/8” x 1/2” x 1-1/2” key, PTO drive shaft 1
27 40960 40960 Nut, jam, 3/8” NC 3
28 BAC-40 40940 Set screw, 3/8” NC, slotted 3
29 BAC-30-10 40740 Pulley, 10.6” P.D. x 2” bore Poly-V pulley, 10 groove (for PTOC-600) 1
30 41300 41300 Set screw, 3/8” NC x 5/8”, allen head 2
31 (1) BAC-28-10 40610 Belt, Poly-V, 10 groove (for PTOC-600) 1
31 (2) BAC-28-10-M 40620 Belt, Poly-V, 10 groove (for PTOC-1000) 1
32 BAC-53 41110 Pipe plug, 1/8” NPT 3
32 41120 41120 Pipe plug, 1/8” NPT, stainless steel (optional) 3
33 BAC-12 40250 Volute 1-1/4” x 1”, cast iron 1
34 BAC-26-CI 40432 Impeller, cast Iron, left hand thread (optional) 1
34 BAC-26-VALOX 40430 Impeller, Valox, left han
