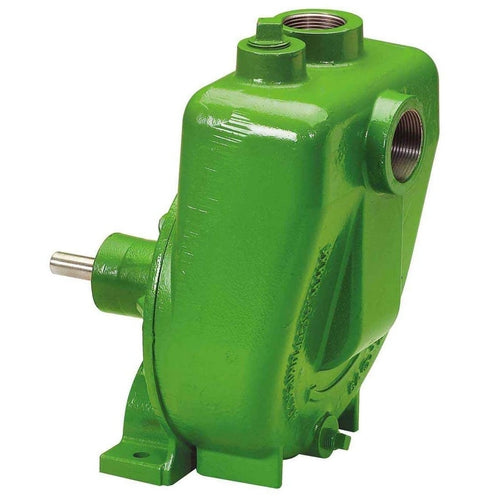

Belt Driven Cast Iron Pump with 1-1/2" Suction x 1-1/4" Discharge Ace Pumps FMC-150
Weight (lbs.): 23, Material: Cast Iron, Technical Specifications: Ace Pumps FMC-150 Product Specifications, Ace Pumps EDP #: 46804, Power Type: Belt Driven, Inlet: 1-1/2" NPT, Outlet: 1-1/4" NPT, Maximum Flow Rate (GPM): 135, Maximum Pressure (PSI): 130, Part Breakdown:
, Reference Number Part Number EDP Number Description Required, 1 BAC-53 41110 Pipe plug,1/8” NPT 4, 1 41120 41120 Pipe plug,1/8” NPT, stainless steel (optional) 4, 2 BAC-12-150 40255 Volute, 1-1/2” x 1-1/4”, cast iron 1, 3 BAC-23-A 40391 Nut, 3/8” NF Hex, cad plated locknut 1, 3 BAC-23-B-SS 40393 Nut, 3/8” NF, stainless steel (standard on -SS models) 1, 4 (1)(2) BAC-24-HYD-SS 40400 Washer, 3/8”, stainless steel 1, 4 BAC-24-B-SS 42702 Washer, 3/8”, stainless steel, vibration proof (standard on -SS models) 1, 5 BAC-26-150-P 40445 Impeller, Valox with keyway 1, 5 BAC-26-150-CI 40446 Impeller, cast iron with keyway (optional) 1, 5 BAC-26-150-PI 40448 Impeller, polypropylene, keyway (optional) 1, 6 (1)(2) BAC-4-150 40015 O-ring for BAC-12-150 volute seal 1, 7 (1) BAC-7V 40151 Seal, Viton mechanical s
| Reference Number | Part Number | EDP Number | Description | Required |
| 1 | BAC-53 | 41110 | Pipe plug,1/8” NPT | 4 |
| 1 | 41120 | 41120 | Pipe plug,1/8” NPT, stainless steel (optional) | 4 |
| 2 | BAC-12-150 | 40255 | Volute, 1-1/2” x 1-1/4”, cast iron | 1 |
| 3 | BAC-23-A | 40391 | Nut, 3/8” NF Hex, cad plated locknut | 1 |
| 3 | BAC-23-B-SS | 40393 | Nut, 3/8” NF, stainless steel (standard on -SS models) | 1 |
| 4 (1)(2) | BAC-24-HYD-SS | 40400 | Washer, 3/8”, stainless steel | 1 |
| 4 | BAC-24-B-SS | 42702 | Washer, 3/8”, stainless steel, vibration proof (standard on -SS models) | 1 |
| 5 | BAC-26-150-P | 40445 | Impeller, Valox with keyway | 1 |
| 5 | BAC-26-150-CI | 40446 | Impeller, cast iron with keyway (optional) | 1 |
| 5 | BAC-26-150-PI | 40448 | Impeller, polypropylene, keyway (optional) | 1 |
| 6 (1)(2) | BAC-4-150 | 40015 | O-ring for BAC-12-150 volute seal | 1 |
| 7 (1) | BAC-7V | 40151 | Seal, Viton mechanical seal (includes 40160 O-ring) | 1 |
| 7 (1)(2) | BAC-7SC | 40152 | Seal, Silicon carbide mechanical seal (includes 40160 O-ring)(optional) | 1 |
| 7A (1)(2) | 40160 | 40160 | O-ring for BAC-6 shaft | 1 |
| 8 | BAC-14-150-F | 40306 | Mounting frame | 1 |
| 9 | 40930 | 40930 | Cap screw, 3/8” NC x 3/4” Hex head, stainless steel (optional) | 4 |
| 9 | 40950 | 40950 | Cap screw, 3/8” NC x 3/4” Hex head | 4 |
| 10 | BAC-54 | 41130 | Slinger | 1 |
| 11 | BAC-33 | 40810 | Snap ring, internal, BAC-14 mounting frame | 2 |
| 12 | BAC-37 | 40870 | Bearing, BAC-6 driven shaft | 2 |
| 13 | BAC-32 | 40790 | Snap ring, external, BAC-6 driven shaft | 2 |
| 14 | BAC-32-S | 40795 | Spacer for BAC-6 shaft | 1 |
| 15 | BACH-25 | 40420 | Key, 1/8” x 1/8” x 1/2” | 1 |
| 16 | BAC-6-150/200-SS | 40056 | Shaft, 5/8” Driven shaft with keyway, stainless steel | 1 |
| 17 | BAC-50 | 41080 | Key, 3/16” x 3/16” x 1-1/4” | 1 |
| (1) | RK-FMC-150 | 52710 | Repair kit for FMC-150 series | - |
| (2) | RK-FMCSC-150 | 52711 | Repair kit for FMC-150 series with silicon carbide shaft seal | - |
