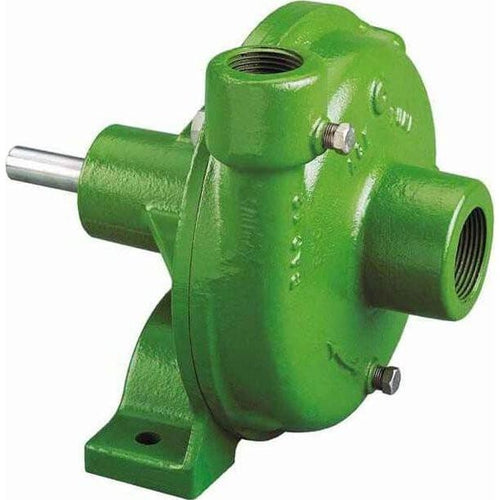

Belt Driven Cast Iron Pump with 1-1/4" Suction x 1" Discharge Ace Pumps FMC
Weight (lbs.): 18, Material: Cast Iron, Technical Specifications: Ace Pumps FMC Product Specifications, Ace Pumps EDP #: 46800, Power Type: Belt Driven, Inlet: 1-1/4" NPT, Outlet: 1" NPT, Maximum Flow Rate (GPM): 70, Maximum Pressure (PSI): 130, Part Breakdown:
, Reference Number Part Number EDP Number Description Required, 1 BAC-53 41110 Pipe plug 3, 1 41120 41120 Pipe plug, stainless steel (optional) 3, 2 BAC-12 40250 Volute, 1 1/4” x 1” 1, 3 BAC-26-VALOX 40430 Impeller, Valox, left hand thread 1, 3 BAC-26-CI 40432 Impeller, cast iron, left hand thread (optional) 1, 4 (1)(2) BAC-4A 40005 O-ring, body seal 1, 4 BAC-4 40010 Gasket, 4 hole, (obsolete 1996) 1, 5 (1) BAC-7V 40151 Seal, mechanical, Viton, includes 40160 “O” Ring 1, 5 (2) BAC-7SC 40152 Seal, mechanical, silicon carbide, includes 40160 (optional) 1, 5A (1)(2) 40160 40160 “O” Ring for BAC-6 shaft 1, 6 BAC-14-F 40310 Mounting frame 1, 7 40950 40950 Cap screw, 3/8” NC x 3/4” hex head 4, 7 40930 40930 Cap screw, 3/8” NC x 3/4” hex head, stainless steel (optional) 4, 8 BAC-54 41130 Slinger 1, 9 BAC-33 40810 Snap ring, internal, BAC-14 mounting frame 2, 10 BAC-37 40870 Ball bearing, sealed, BAC-6 shaft 2, 11 BAC-32 40790 Snap ring, external, BAC-6 shaft 2, 12 BAC-32-S 40795 Spacer for BAC-6 shaft 1, 13 BAC-6-SS 40070 Shaft, 5/8” diameter, left hand thread, stainless steel 1, 14 BAC-50 41080 Key, 3/16” x 3/16” x 1-1/4” 1, (1) RK-FMC 52700 Repair kit for FMC series -, (2) RK-FMCSC 52706 Repair kit for FMC s
Reference Number | Part Number | EDP Number | Description | Required |
1 | BAC-53 | 41110 | Pipe plug | 3 |
1 | 41120 | 41120 | Pipe plug, stainless steel (optional) | 3 |
2 | BAC-12 | 40250 | Volute, 1 1/4” x 1” | 1 |
3 | BAC-26-VALOX | 40430 | Impeller, Valox, left hand thread | 1 |
3 | BAC-26-CI | 40432 | Impeller, cast iron, left hand thread (optional) | 1 |
4 (1)(2) | BAC-4A | 40005 | O-ring, body seal | 1 |
4 | BAC-4 | 40010 | Gasket, 4 hole, (obsolete 1996) | 1 |
5 (1) | BAC-7V | 40151 | Seal, mechanical, Viton, includes 40160 “O” Ring | 1 |
5 (2) | BAC-7SC | 40152 | Seal, mechanical, silicon carbide, includes 40160 (optional) | 1 |
5A (1)(2) | 40160 | 40160 | “O” Ring for BAC-6 shaft | 1 |
6 | BAC-14-F | 40310 | Mounting frame | 1 |
7 | 40950 | 40950 | Cap screw, 3/8” NC x 3/4” hex head | 4 |
7 | 40930 | 40930 | Cap screw, 3/8” NC x 3/4” hex head, stainless steel (optional) | 4 |
8 | BAC-54 | 41130 | Slinger | 1 |
9 | BAC-33 | 40810 | Snap ring, internal, BAC-14 mounting frame | 2 |
10 | BAC-37 | 40870 | Ball bearing, sealed, BAC-6 shaft | 2 |
11 | BAC-32 | 40790 | Snap ring, external, BAC-6 shaft | 2 |
12 | BAC-32-S | 40795 | Spacer for BAC-6 shaft | 1 |
13 | BAC-6-SS | 40070 | Shaft, 5/8” diameter, left hand thread, stainless steel | 1 |
14 | BAC-50 | 41080 | Key, 3/16” x 3/16” x 1-1/4” | 1 |
(1) | RK-FMC | 52700 | Repair kit for FMC series | - |
(2) | RK-FMCSC | 52706 | Repair kit for FMC series with silicon cardide seal | - |
